Mesh Plate Stepped Screen

Contact Us Download
PREV：Fiber Turntable Filter Cloth Filter (QBFP Series)NEXT：Internal Inlet Mesh Screen
Mesh Plate Stepped Screen
Product introduction
The ladder wool scooping machine is a special water treatment equipment that can continuously and automatically intercept and remove various shapes of debris in the fluid, which can be widely used in urban and industrial sewage treatment, especially for the removal of fiber-like garbage in printing and dyeing sewage. As well as the water industry, power plant water intake, but also as textile printing and dyeing (wool), food processing  (particles, skin), traditional Chinese medicine wastewater (particles, skin), paint (particles), slaughter (hair and meat cutting), paper, leather (hair and meat cutting) and other industries in the wastewater treatment process of the pre-screening equipment.


The ladder wool scooping machine is a special water treatment equipment that can continuously and automatically intercept and remove various shapes of debris in the fluid, which can be widely used in urban and industrial sewage treatment, especially for the removal of fiber-like garbage in printing and dyeing sewage. As well as the water industry, power plant water intake, but also as textile printing and dyeing (wool), food processing (particles, skin), traditional Chinese medicine wastewater (particles, skin), paint (particles), slaughter (hair and meat cutting), paper, leather (hair and meat cutting) and other industries in the wastewater treatment process of the pre-screening equipment.


Strong applicability, simple structure, stable operation, reliable work, easy maintenance, low cost;
According to different shapes and characteristics of garbage, matching different structures of the grid board, professional, more obvious effect;
Beautiful appearance, practical and efficient, strong versatility, upgrading can be applied.

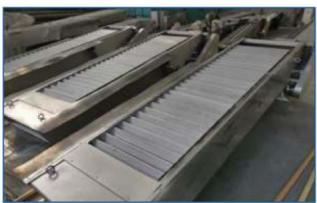

Straight-hole plate dredge machine

Used in: food processing fruit puree, fruit peel (shell), fruit pit, starch, Chinese medicine residue, particulate matter, etc.

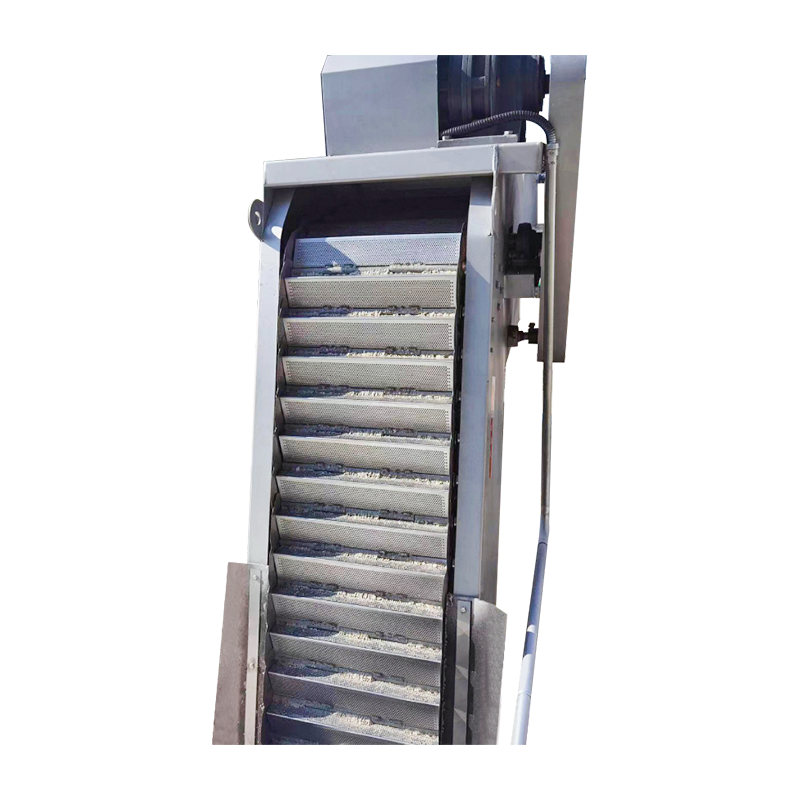

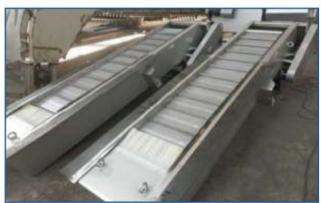

Mesh plate stepped screen

Used in: household garbage, urban sewage plant, water plant, village pump station, industrial wastewater, and so on.



Difference between mesh plate stepped screen and another screen machine
An internal inlet mesh screen Rotary drum type    Tooth rake type Reverse scoop type mesh plate stepped screen Note
  Installation
  method		 90 degree 35 degree 60-75degree 60-80 degree  45-75         degree Can directly use a rake tooth grille, drum grille, and other old groove installation hole plate step type
  Supporting
  equipment		 Must be equipped with chute, high-pressure pump, water storage tank, high drainage press Flushing pump Can be used directly,
optional conveyor
or ordinary press		 Can be used directly,
optional conveyor
or ordinary press		   Can be used directly,
  optional conveyor
or ordinary press		 Can be used directly,
optional conveyor
or ordinary press
  Production cost
Non-standard accessories, the highest cost		 High cost Low cost High cost The cost is slightly
 higher, and the
 accessories are relatively standardized

Cost:Cost:Inward

flow>Orifice plate> Rotary drum type> Tooth rake type
Installation and commissioning must send people to customers' project site Guide installation Simple installation,
telephone communication		 Simple installation,
telephone communication		   Simple installation,
telephone communication

  Maintenance Regular maintenance is required, and the smaller the aperture, the higher the maintenance frequency regular maintenance is required, and the smaller the aperture,
he higher the maintenance frequent		 Tooth rake, slag plate easy to be agency Requires regular maintenance
Tighten the chain		 Normal 2 years do not need maintenance,2 years
later according to the need to replace the parts
Wom out spare parts Brush roller Scrubber Raketeeth, slag board, brush Chain fitting Brush roller
Consume resources High-pressure flush water

requires a lot of clean

water		 A lot of dean water is needed No No No
Appearance Enclosure The full enclosure is an option
Maintenance rate The highest Slight high Normal Slight high Rare

Slag extraction characteristics

 No entanglement,
ordinary and small garbage can be		 Relatively simple Wide application range, easy to wrap A big piece of junk

Large scope of application, no winding;

Hair, particle debris, and hand household waste can be selected
Related Products
About Us
Pioneering Sustainable Solutions for a Greener Future
Qingben Environmental Technology (Jiangsu) Co., Ltd. is a professional enterprise specializing in the manufacturing and service of sludge and wastewater treatment equipment. We are based in the field of sludge and wastewater treatment equipment research and development, and we specialize in providing sludge dewatering machines, sludge drying equipment, complete sets of wastewater treatment equipment, river and lake sediment drying equipment, and technical services.
As a professional Custom Mesh Plate Stepped Screen Manufacturers and Mesh Plate Stepped Screen Factory, We provide comprehensive technical support from project consultation, design, construction to operation and maintenance, ensuring the successful implementation and efficient operation of sewage treatment and sludge treatment projects.
About Us
Qingben Environmental Technology (Jiangsu) Co., Ltd.
Certificates
Honor exists because of our customers
  • ISO45001

    ISO45001

  • ISO14001

    ISO14001

  • ISO9001

    ISO9001

  • After-Sales Service Certification

    After-Sales Service Certification

  • CE

    CE

  • A heat pump sludge dryer that prevents sludge sticking

    A heat pump sludge dryer that prevents sludge sticking

  • A high -pressure band machine for municipal river mud dehydration

    A high -pressure band machine for municipal river mud dehydration

News
Quickly understand our information
Let's have a conversation

Just say hello and we'll start a fruitful collaboration. Start your own success story.

Mechanical Screen industry knowledge

The Mesh Plate Stepped Screen is a special water treatment equipment that can automatically intercept and remove various shapes of debris in the fluid. It can be widely used in urban and industrial sewage treatment, especially for the removal of fibrous garbage in printing and dyeing sewage. This equipment effectively solves the industry pain points such as easy clogging and low separation efficiency of traditional grilles through the principle of step-by-step dynamic screening. It is especially suitable for sewage treatment scenarios containing complex impurities such as fibers and hair.

The mesh plate ladder screen has strong applicability, simple structure and stable operation. It is easy to clean and maintain. In specific industrial scenarios, grid plates of different structures can be selected according to different garbage shapes and characteristics, which is more professional and more effective. Its modularly designed rubber-coated mesh plate assembly forms a dynamic seal through the precise matching of the elastic rubber layer and the guide rail, effectively preventing the penetration of micron-level particles. This feature makes it also perform well in scenarios such as separation of drug residues in pharmaceutical wastewater and screening of fruit peels in food processing plants.

From textile printing and dyeing (wool), food processing (particles, skins) to industrial circulating water systems, the mesh plate ladder screen is continuously promoting the coordinated development of intensive utilization of water resources and environmental protection with its efficient and reliable performance.
