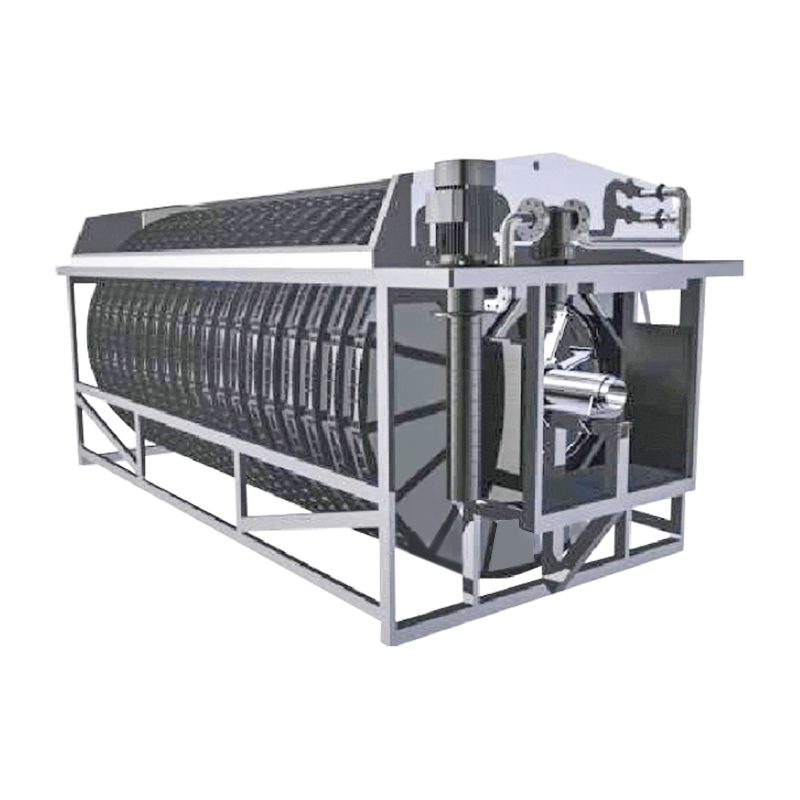

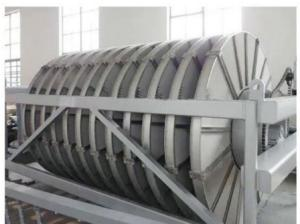

Fiber Turntable Filter Cloth Filter (QBFP Series)
Product introduction

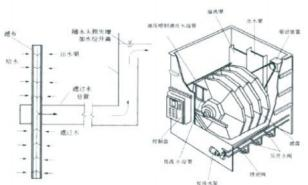

Raw water enters the filter through the inlet weir plate and passes through the filter cloth under gravity action. During filtration, the floss with a particle size of a few microns can be trapped by laying down the cloth pile. After the raw water is filtered through the filter cloth, the clean water enters the inside of the filter disc and flows into the adjustable outlet weir through the rotating drum of the filter disc. With the progress of filtration, the material trapped on the filter cloth increases, the filtration speed gradually decreases, and the water level in the filter tank rises. When the water level rises to the set value, the control system starts the backwashing process and starts cleaning the filter cloth. The driving motor drives the center drum to rotate, the suction cup is close to the surface of the filter cloth for negative pressure suction, the solids trapped between the fluff fibers are released, and the water in the filter plate is sucked out from the inside out, bringing the particles deposited on the filter plate together to achieve the purpose of cleaning.
In addition to cleaning the solid particles trapped on the surface of the filter plate, the larger particles in the sewage will naturally settle to the bottom of the bucket pool, and this part of the sediment is regularly cleaned out of the pool through the bottom suction pipe. During the entire filtration process, the filter disc and the suction cup remain stationary, and the filtration runs continuously during backwashing


1. Vertical tray design, large filtering area, small footprint
2. The use of long hair fiber filter cloth, filter cloth flux, fast filtering speed
3. Filter cloth lodging, increase the filtration depth, and filtration accuracy up to micron level when backwashing the lodging fiber stands up, the dirt will be released
4. Wash the filter cloth in groups one by one
5. The head loss is small, and the filter is generally 300mm
6. The pre-treatment system accident has little impact on the filter, and the recovery is fast
7. Use an anti-clogging suction pump
8. The combination of filter and sedimentation tank causes part of the sewage to settle to the bottom of the tank and discharge
9. Anti-freezing design for cold areas
10. Continuous operation, level sensor automatic control backwash

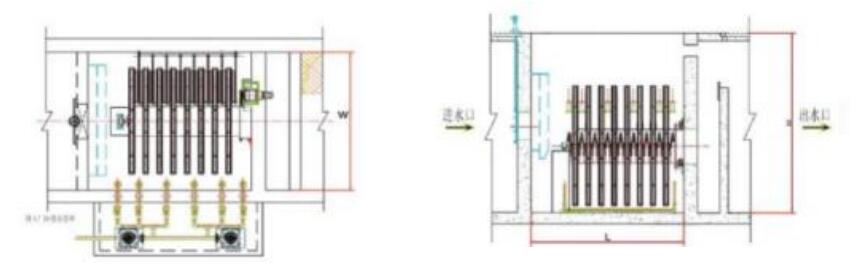

Model Disc diameter (mm) Disc total area (m3) Lmm) W(mm) H(mm) Rated Power
(KW)
QBFP-2002 2000 11.2 2000 2600 3500 2.83
QBFP-2003 2000 16.8 2300 2600 3500 2.83
QBFP-2004 2000 22.4 2600 2600 3500 2.87
QBFP-2006 2000 33.6 3200 2600 3500 2.91
QBFP-2008 2000 44.8 3800 2600 3500 2.95
QBFP-2010 2000 56 4400 2600 3500 5.39
QBFP-2012 2000 67.2 5000 2600 3500 5.43
QBFP-2014 2000 78.4 5600 2600 3500 5.47
QBFP-2016 2000 89.6 6200 2600 3500 5.51
QBFP-2018 2000 100.8 2600 3500 7.79
QBFP-2020 2000 112 7400 2600 3500 7.83
QBFP-3008 3000 100s 4600 4000 4700 5.69
QBFP-3010 3000 126 5300 4000 4700 5.78
QBFP-3012 3000 151.2 6000 4000 4700 5.87
QBFP-3014 3000 176.4 6700 4000 4700 8.16
QBFP-3016 3000 201.6 7400 4000 4700 8.25
QBFP-3018 3000 226.8 8100 4000 4700 8.34
QBFP-3020 3000 252 8800 4000 4700 10.63



Filtration speed: 15m3/ hour

Backwash water: less than or equal to 1% of the total water

Head loss: normal head loss of 300mm

Backsuction strength: 333I/m2.s

Scope of application: water ss< 30mg/l, effluent ss< 5mg/l filter

Cloth selection: long hair fiber filter cloth, suitable for mass-suspended

Matter filter disc speed: 1-2rpm

Optional: anti-freezing design

Related Products
About Us
Pioneering Sustainable Solutions for a Greener Future
Qingben Environmental Technology (Jiangsu) Co., Ltd. is a professional enterprise specializing in the manufacturing and service of sludge and wastewater treatment equipment. We are based in the field of sludge and wastewater treatment equipment research and development, and we specialize in providing sludge dewatering machines, sludge drying equipment, complete sets of wastewater treatment equipment, river and lake sediment drying equipment, and technical services.
As a professional Custom Fiber Turntable Filter Cloth Filter (QBFP Series) Manufacturers and Fiber Turntable Filter Cloth Filter (QBFP Series) Factory, We provide comprehensive technical support from project consultation, design, construction to operation and maintenance, ensuring the successful implementation and efficient operation of sewage treatment and sludge treatment projects.
About Us
Qingben Environmental Technology (Jiangsu) Co., Ltd.
Certificates
Honor exists because of our customers
  • ISO45001

    ISO45001

  • ISO14001

    ISO14001

  • ISO9001

    ISO9001

  • After-Sales Service Certification

    After-Sales Service Certification

  • CE

    CE

  • A heat pump sludge dryer that prevents sludge sticking

    A heat pump sludge dryer that prevents sludge sticking

  • A high -pressure band machine for municipal river mud dehydration

    A high -pressure band machine for municipal river mud dehydration

News
Quickly understand our information
Let's have a conversation

Just say hello and we'll start a fruitful collaboration. Start your own success story.

Mechanical Screen industry knowledge

The Fiber Turntable Filter Cloth Filter (QBFP Series) uses filter cloth as the medium. Through the synergistic effect of gravity filtration and dynamic backwashing, it realizes the fine interception of suspended matter and the continuous operation of the system, becoming an indispensable key link in the current sewage treatment process chain.

When the equipment is running, the sewage flows into the filter through the water inlet weir plate and passes through the filter cloth under the action of gravity. In this process, the fluff fibers on the surface of the filter cloth form a dense barrier by flattening and lodging, which can efficiently intercept tiny particles such as suspended matter and short fibers. After the raw water is filtered by the filter cloth, the clean water enters the filter disc and then flows into the adjustable outlet weir through the filter disc drum. As the filtration continues, the amount of material trapped on the filter cloth gradually increases, resulting in a slowdown in the filtration speed and a corresponding increase in the water level in the filter tank. When the water level reaches the preset value, the control system automatically starts the backwashing program and starts to clean the filter cloth. The drive motor drives the central drum to rotate, and the suction cup is close to the surface of the filter cloth for negative pressure suction, releasing the solid matter trapped between the fluff fibers, and sucking out the water in the filter disc from the inside to the outside, so that the particles deposited on the filter plate gather, thereby achieving a cleaning effect. The backwashing process of the equipment fully reflects the intelligent characteristics of the equipment.

As a product of water treatment technology innovation, the fiber disc filter cloth filter solves the pain points of traditional processes such as large floor space, high energy consumption, and complex maintenance through the deep integration of structural innovation and intelligent control. It also provides reliable technical support for urban water resource recycling and industrial clean production with the advantages of stable water quality and low operating costs.
