Internal Inlet Mesh Screen

Contact Us Download
PREV：Mesh Plate Stepped ScreenNEXT：Rotary Drum Screen

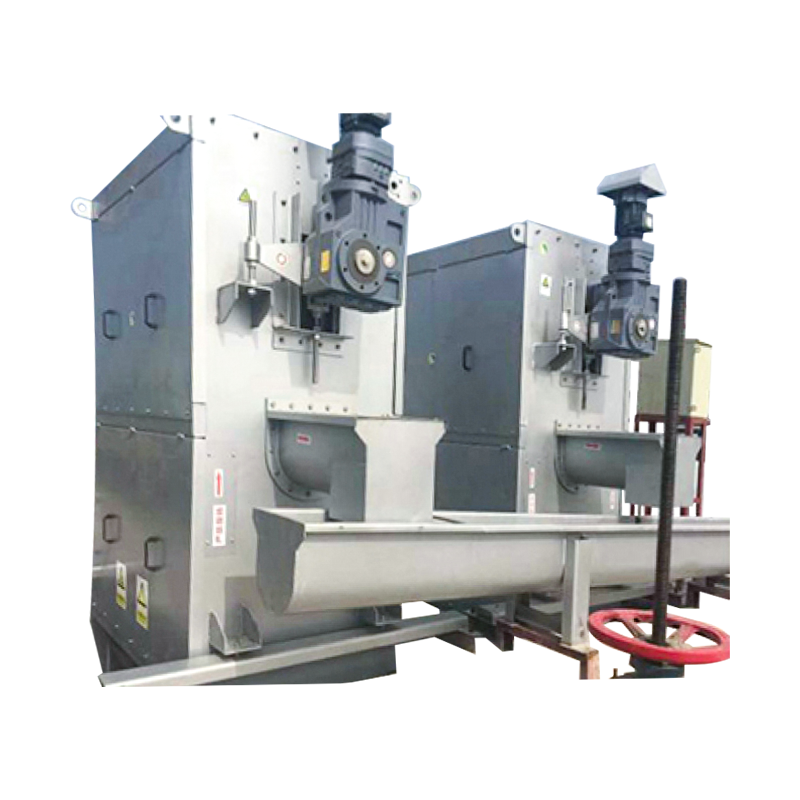

Internal Inlet Mesh Screen
Product introduction
The internal inlet mesh screen is suitable for the solid-liquid separation process and can be widely used in municipal sewage such as new construction, reconstruction, water quality upgrading, technical transformation, upgrading of sewage treatment plant pretreatment process, and reclaimed water depth treatment process, industrial sewage such as textile, paper and other processes and tap water pretreatment process.


The internal inlet mesh screen is composed of six parts: frame, drive system, grid system, backwash system, slag removal system, and electric control system. The gear motor drives the sprocket to rotate, the sprocket drives the continuous rotation of the mesh board: the sewage enters the grating from the water inlet, filtered by the mesh board: after filtering, the water flows to the outside of the mesh board and the dirt is trapped on the inner surface of the mesh board, with the continuous rotation of the mesh board to the top: the backwash system washes the outside of the mesh board, the dirt is washed to the slag collection tank under the action of the washing water, and flows out of the sewage port with the washing water.

1. Frame section

The main material is 304 stainless steel.

2. System

The drive sprocket adopts PA1010, which has excellent wear resistance and self-lubrication, good rigidity, mechanical strength, and medium stability, and its acid and alkali resistance, oil resistance and cold resistance are very good, ensuring the use in the sewage environment.

The guide rail is made of polymeric polyethylene material, which has good wear resistance and self-lubricating properties.

The guide rail is made of polymeric polyethylene material, which has good wear resistance and self-lubricating properties.

3. Mesh screen

The inner sleeve of the rotary wheel is nylon injection molded parts, and the coat is treated with hanging glue to improve wear resistance. Because the rubber layer has good elasticity, it greatly extends its service life and protects the surface of the guide rail.

The chain plate is a polyethylene injection molding part with a unique structural design, which can be well sealed with the end face of the rail during the rotation process of the grid board to prevent dirt from entering the rail and causing water pollution and rail wear after filtration.

The mesh board is the core component of the whole grid, the use of non-metal injection parts reduces the weight of the whole machine, while the modular design is conducive to the installation and maintenance of the mesh board system.



1. high removal rate, can effectively remove hair and other fibers;
2. The backwashing water will remove the dirt trapped on the mesh board thoroughly, and will not fall into the filtered water to avoid secondary pollution;
3. the board is made of non-metal injection parts, wear resistance, and corrosion resistance;
4. underwater without transmission parts, no maintenance, more convenient repair and maintenance;
5. easy to wear parts are completely standardized, easy to replace, easy to operate;
6. smooth operation, light vibration, low noise.



Product series NL
Filtration accuracy (mm) C1、C2、C3、C4、C5
Water flow range (10,000 tons/day) 0.5~25
Drive power (Kw) 0.75~3
Number of rows (N) 6-12 6-15 8-16 10-16

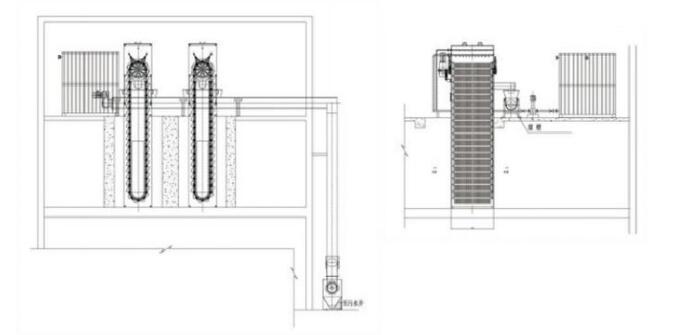

Inlet width b (mm) 480  640  850  1000
Suitable installation channel width B (mm) 1200-1500  1500-1800  1800-2200 ≥2200
Suitable installation of channel depth H (mm) 1200-3000 1500-5000 1800-5500 2200-6000
Device Length L (mm) 150*N+1000
Device Width Bo (mim) 1100  1280  1480  1680
Equipment height (mm) H+2270 H+2725 H+2925 H+2975
